VG30 into S Chassis Swap Kit

Xcessive Manufacturing's VG30 swap kit is a simple way to mount the venerable V6 in the 240SX (S) chassis are designed to place the engine as low as possible and as far back as possible to allow the shifter to sit in virtually the stock location and help with weight distribution. All parts are CNC cut from 1/4" steel plate, formed and plated, these components will last a life time. The mounts are designed to be used with your factory style S chassis motor mounts (KA or SR) so no need to buy a set of special mounts.

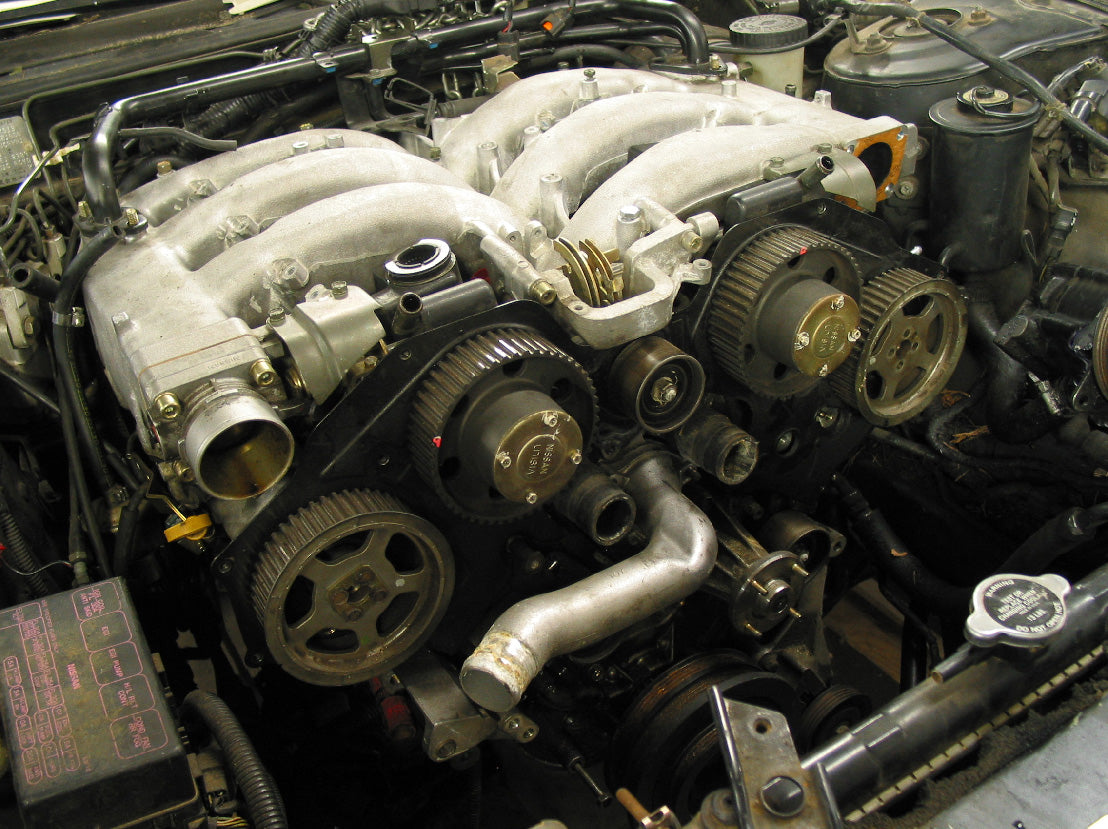

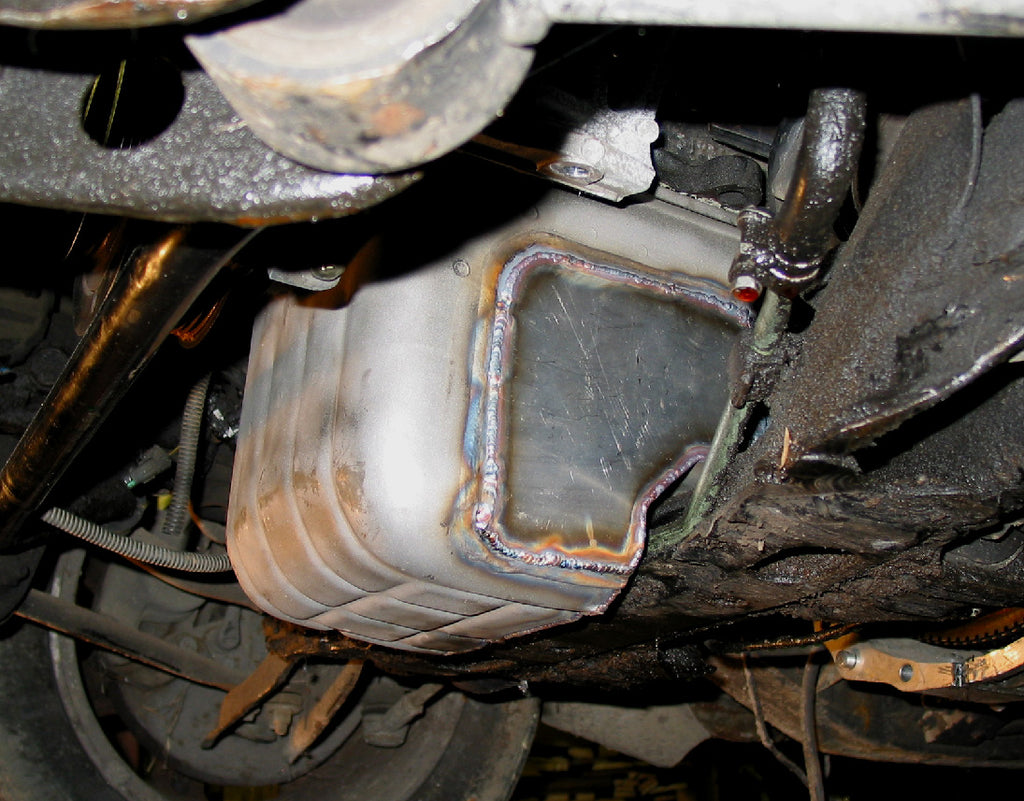

Due to the size of this motor, clearance to the vacuum brake booster must be checked as well as clearance to the fire wall. The front sump oil pan and oil pick up will require modification to fit in the S chassis. Please read the instructions on this site to learn more about the requirements for running this kit.

Please specify S13, S14 or S15 when ordering to get the correct driveline. If you're using a Z31 series VG30ET with it's mating transmission, the driveline in this kit will not work. You may consider our VG30 mount kit that comes without the driveline.

Different VG configurations such as twin turbo or sedan based motors may have different accessories that need to be addressed upon install such as oil pan and exhaust. The twin turbo exhaust manifolds are not designed to fit the S chassis and will require significant work for fitment.

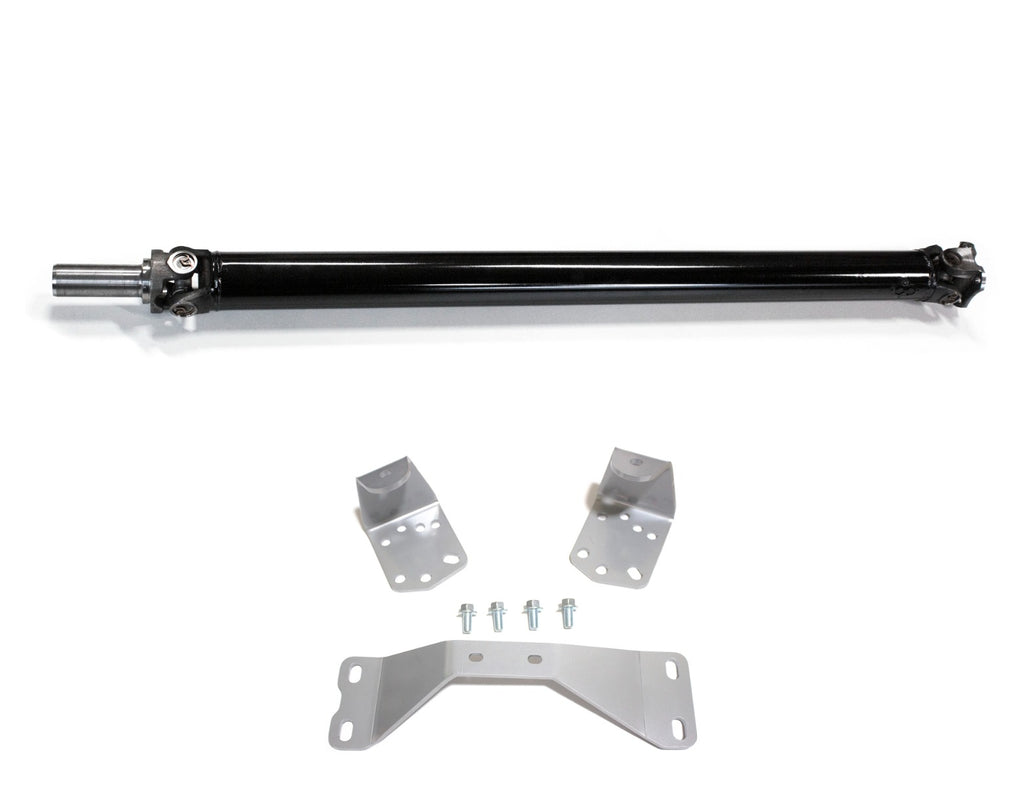

Kit Includes:

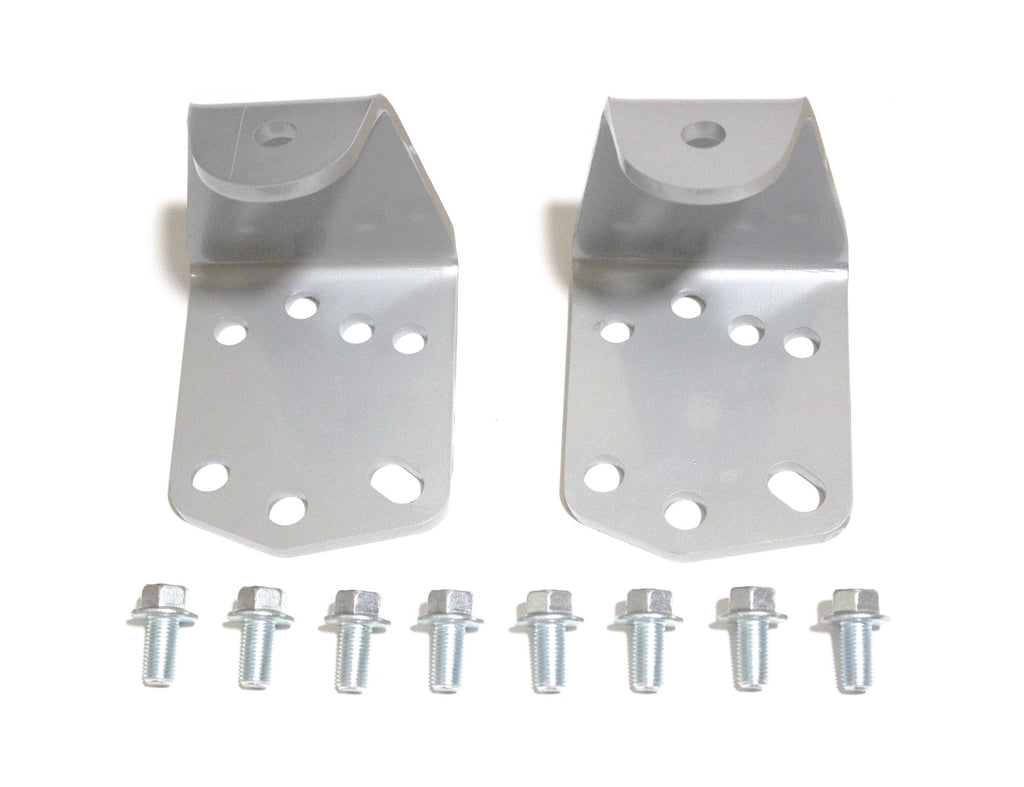

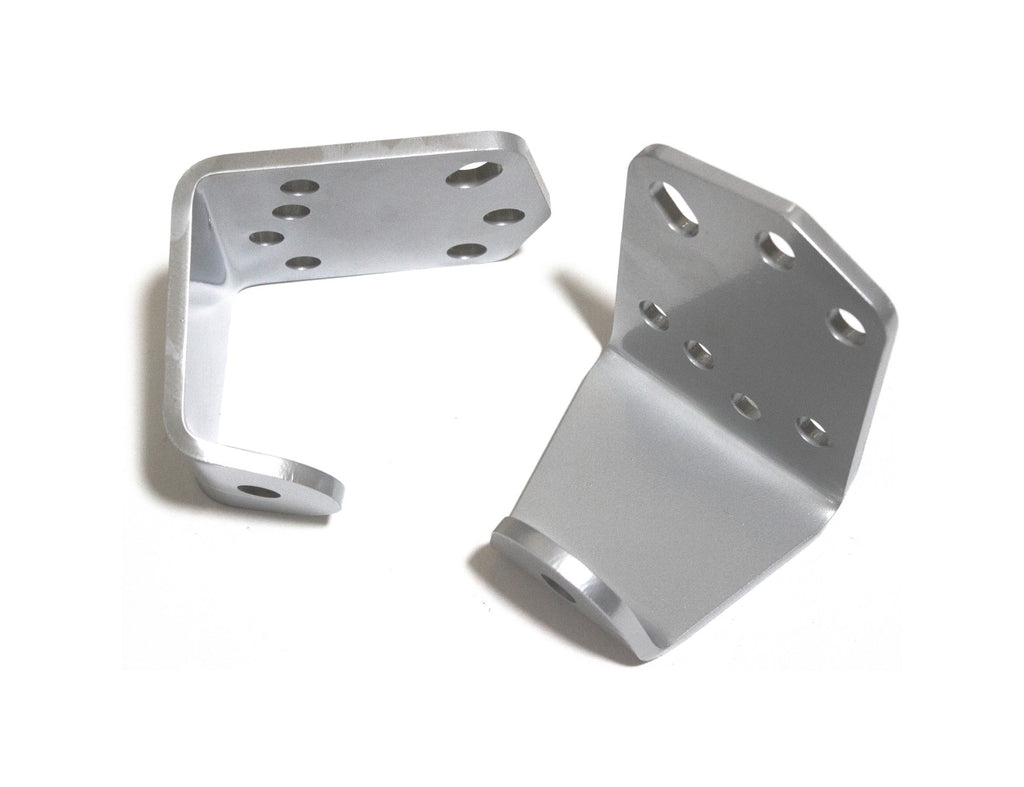

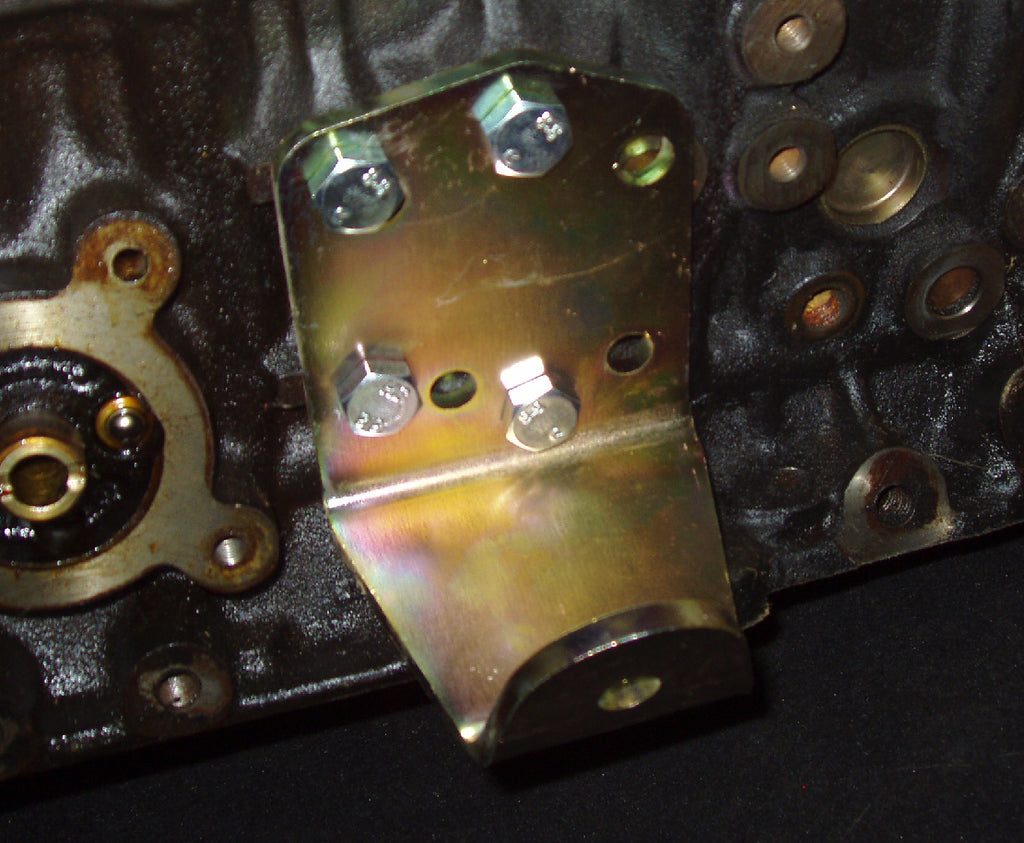

Motor mount brackets
Transmission cross member
Bolting hardware
Driveline.

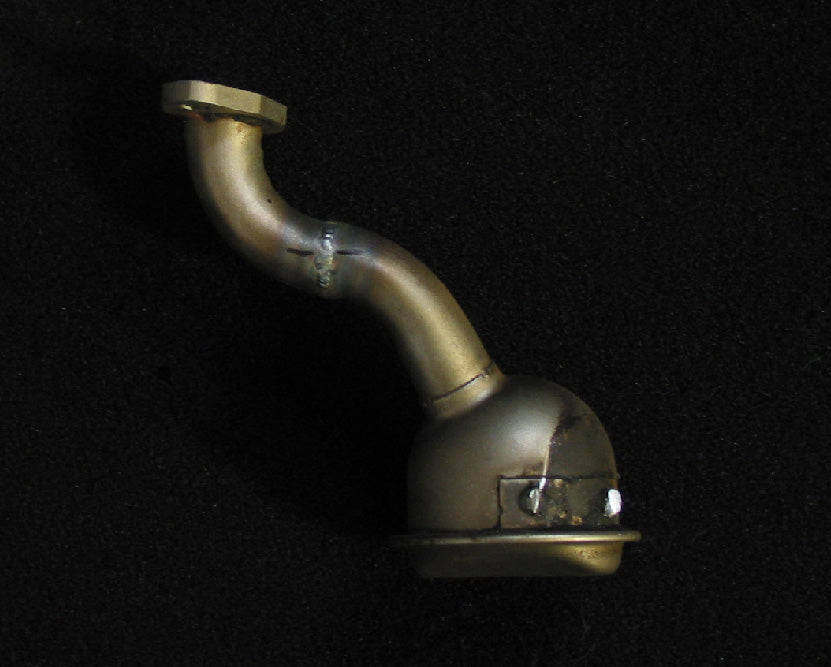

The oil pan modification and oil pick modification up are separate from this kit.
