FD Urethane Motor Mounts

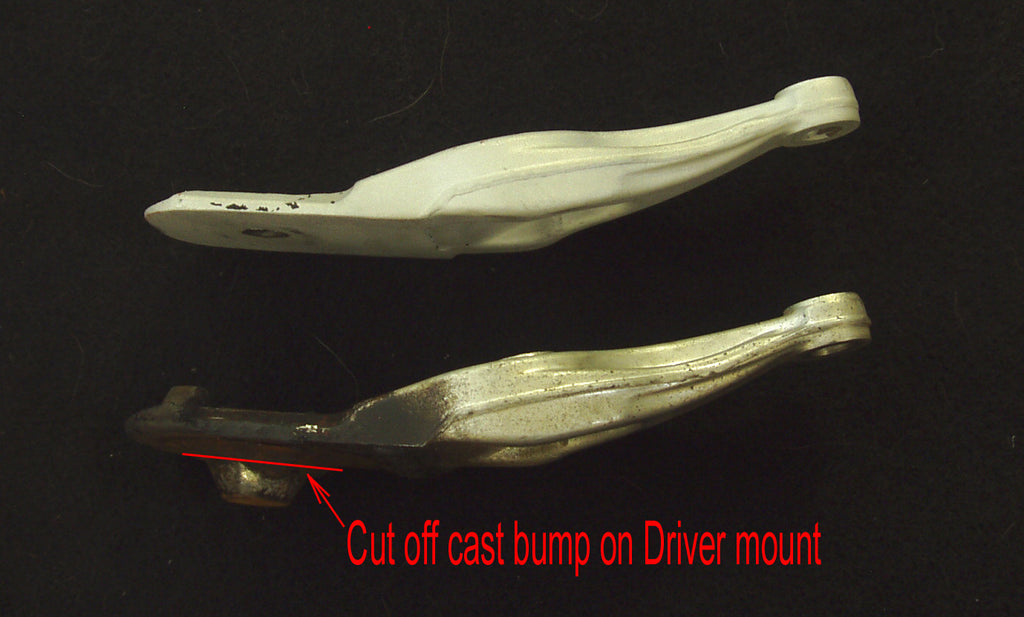

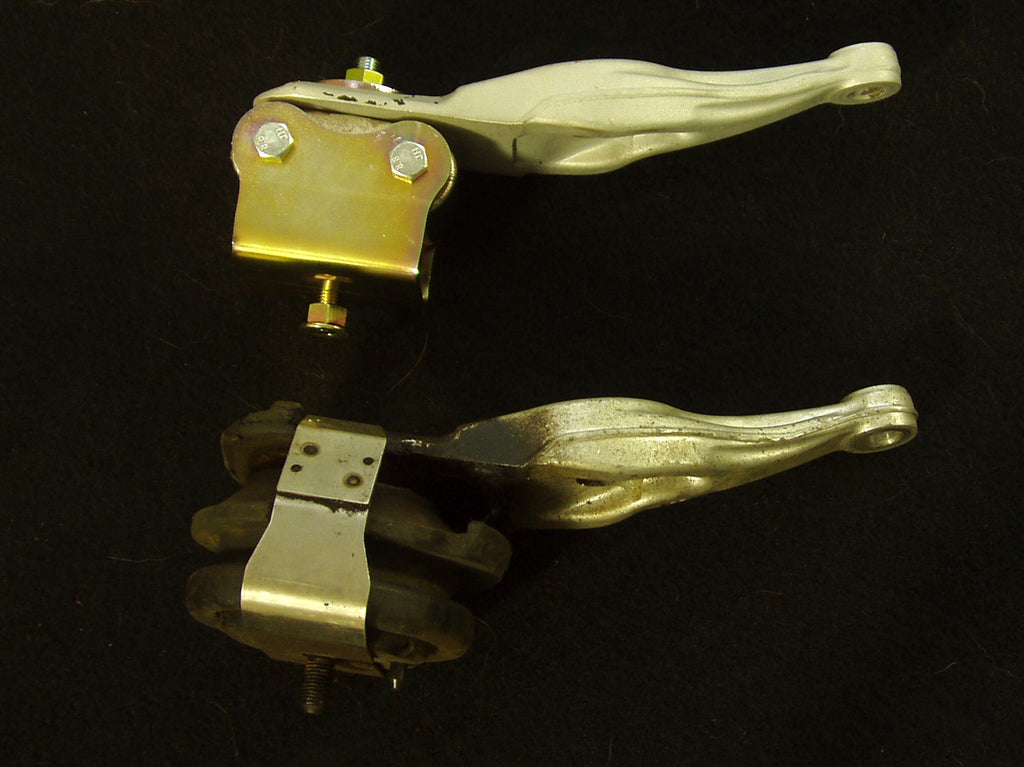

We've designed these mounts for the '93 and up FD chassis to be a direct replacement for those soft, worn out rubber mounts with only one modification to the driver side bracket required. NOTE: There's a difference in height for USDM and late model Series 8 NON USDM, please notify us if you have an Series 8 NON USDM chassis.

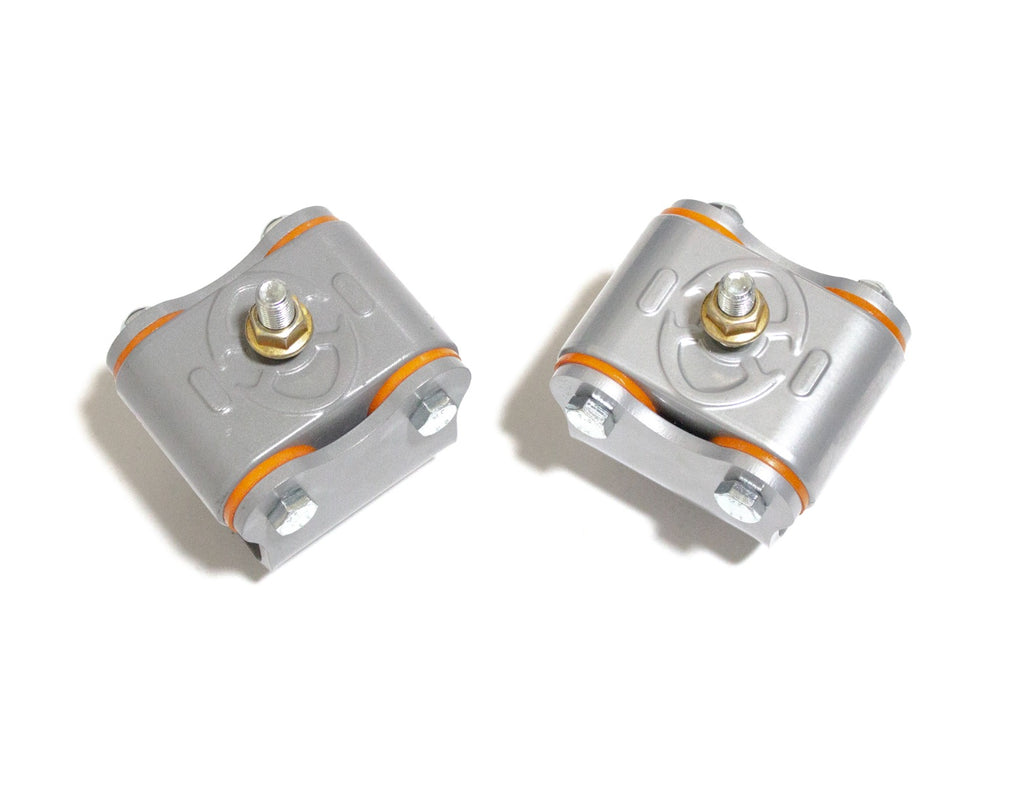

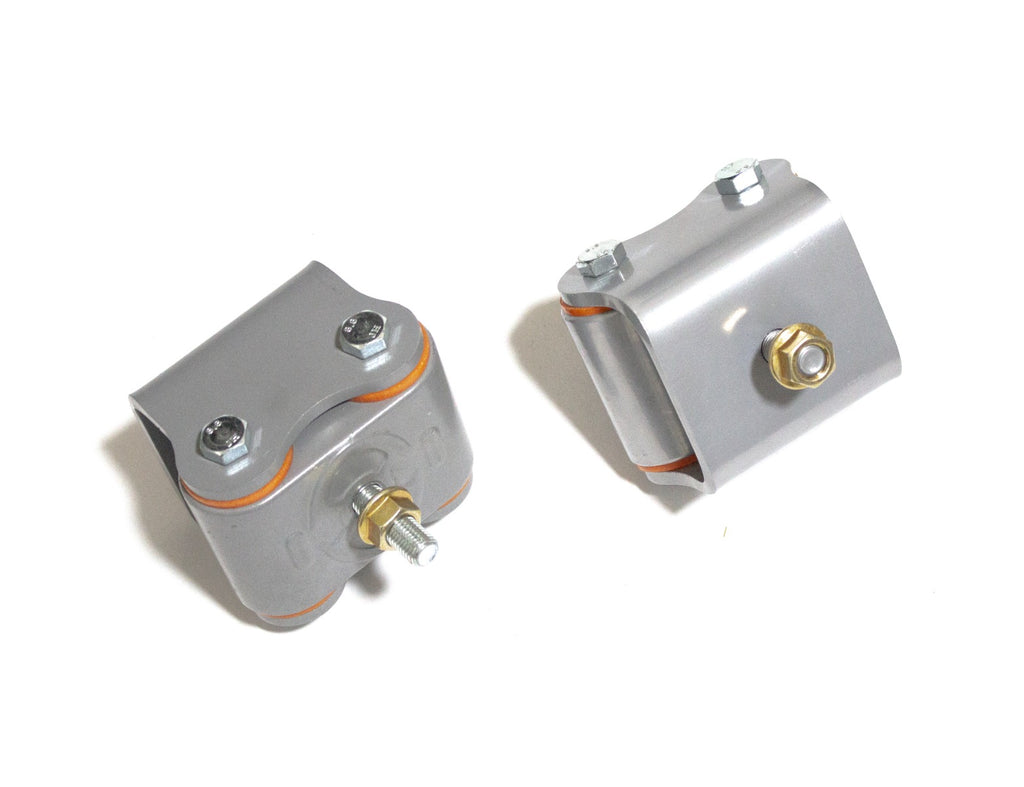

We set them up standard with stiffer 80A (Orange) Urethane bushings but also offer 65A (Yellow) bushing. The 80A urethane bushings are significantly firmer than stock rubber, so expect an increase in the transfer of engine "noise" into the car. If you want the 65A bushings, please specify at the time of order, although you can order and replace them later if you wish. With our full floating bushings, these mounts will give more dampening than common "puck" type mounts that only use one block of plastic and full through bolt.

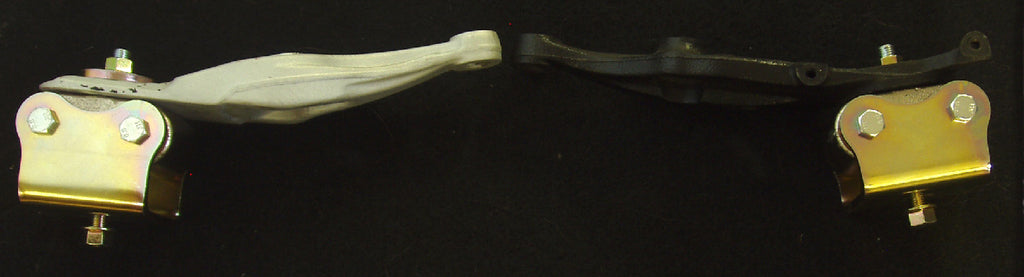

The mounts are two different heights to accommodate the stock mounting arms on the USDM chassis, aluminum on the Left side and steel on Right side. If you've converted to two steel mount arms or have a RHD chassis, you will need the short set of mounts with two short mounts. The stock Series 8 chassis ('99 - '02) has the two steel arms from the factory, please confirm how your motor is set up prior to ordering if you're not sure.

Features:

Stock fitment, sold in pairs

Significantly less movement of the engine

Full floating omni-directional dampening unlike "puck" type mounts with a single through bolt. The bolt causes full metal contact from top to bottom.

Optional 65A (Yellow) bushings Easy replacement bushings All new components

Comes with all required hardware to directly replace stock mounts
